► PRODUCT FEATURES
1.THREE STAGES CURRENT, TIMING & TEMPERATURE PROTECTION.
The unit has three stages of over current protection. Current based, length of time at over current levels and temperature based.
2.AUTOMATIC INTERNAL LOW VOLTAGE RE-START.
When the battery is stored for a long period with no charging lithium batteries normally are hard to recover. Our batteries have
Ultra Low Voltage Recovery, just connect the battery to lithium battery charger to auto recover easily.
3.SELF-RECOVERY AFTER A SHORT CIRCUIT.
The circuit trips when connected to the short-circuit source. The system automatically restores the power supply,
when the short-circuit source is disconnected.
4.PARALLEL CONNECTION OF THE BATTERY PACKS.
You can use an infinite amount of our batteries in parallel. Our BMS will handle this seamlessly.
5.ACTIVE CROSSOVER EQUALIZATION OF THE INTERNAL CELL BANKS.
Our multi string active cell balancer keeps the internal cells banks equalized, If one or more banks are lower than another bank
the balancer will divert power form the higher bank into the lower banks when charging and discharging.
6.BATTERY CAN CONTINUE TO OPERATE AFTER A SINGLE CELL FAILS.
When a single cell fails the battery pack will continue to operate normally but at a reduced capacity or power.
7.THERE IS NO VOLTAGE SPIKE, WHEN THERE IS A SINGLE CELL SHORT CIRCUIT.
When a single cell fails the Active Balancer will control the voltage of the other banks of cells so there is no voltage spike.
8.OUR BMS ADOPT DIGITAL CONTROL PROTECTION AND ANALOG CONTROL PROTECTION.
9.ON THE BASIS OF OVER-TEMPERATURED PROTECTION,OUR BMS HAVE THE FUNCTION OF LOW-TEMPERATURED PROTECTION.
► PRODUCT SPECIFICATIONS
1.Product Overview
|
200AH Lithium Iron |
3000+Cycles |
|
Dimensions: 447*170*240mm |
Chemical: Lithium Iron LiFePo4 |
|
Cell Type: Prismatic |
Cell Weight: 15.52±0.1kgs |
|
Operating Temperature Range: -20°C ~ +60°C |
Voltage: 12.8VDC |
|
Max Continuous Current: 100A |
Max 30 Seconds Pulse: 120A |
|
Min Charge Current: 1A |
Cell Capacity: 104Ah |
|
Max Charge Current: 60A |
Max Charge Voltage: 14.6V |
|
Recommended Charge: 30A |
Cell Balancing: 5AH charge & discharge |
|
Cycles @ 100% DOD: DOD 2000 Cycles |
Cycles @ 80% DOD: DOD 3000 Cycles |
|
Cycles @ 50% DOD: DOD 3500 Cycles |
Cycles @ 30% DOD: DOD 8000 Cycles |
|
Low Voltage cut out: 10.0VDC |
BMS Reconnect: Automatic |
|
Terminal: T10 (mm) |
IP Rating: IP65 |
2.Technical Specifications
| Specifications | Rating | Notes |
|---|---|---|
| Overall Voltage Overcharge Protection: | 14.8V | Maximum single cell voltage: 3.65V |
| Standard Discharge Current: | 100A | 0.5C |
| Maximum Active Circuit Current: | Running Current: 5A Max Running Current: 8A |
Final equilibrium effect: 3mv (Average voltage difference between the unit and battery) |
| Working Temperature: | -20-60℃ | |
| Storage Environment Conditions: |
Storage temperature: -40℃~85℃ 5%~75% RH Relative humidity |
Lithium iron phosphate battery has excellent electrochemical performance. The charging and discharging platform is very stable. |
| Single Cell Over-Charge Protection Voltage: |
3.65±0.05V Release: 3.550±0.05V |
|
| Single Cell Over-Discharge Protection Voltage: |
Protection: 2.50±0.1V Release: 2.70±0.05V |
|
| Short Circuit Protection: | Delay<10uS Current>250A | |
| Charging/Discharge High Temperature Protection Temperature: |
Protection: 70±2℃ Release: 65±2℃ |
|
| Charging Low Temperature Protection Temperature: |
Protection: -0±2℃ Release: 5±2℃ |
|
| Discharge Low Temperature Protection Temperature: |
Protection: -20±2℃ Release: -15±2℃ |
|
| First Discharge Over Current: | 120±10A Delay: 30S±3S | |
| Secondary Discharge Over Current: | 150±10A Delay: 3S±1S | |
| Charge Over Current: | >60A Delay: 6S | |
| Low Voltage Charging: | Battery Pack＜ 2.5V BMS Charging Current: 0.8A Each Cell> 2.2V Restore MAX current charge |
|
| MOS FET High Temperature Protection: |
Protection: 70±2℃ Release: 65±2℃ |
The MOS FET temperature is higher than the high value, the battery will shuts off,and the temperature is lower than the lower,the battery will release. |
| Any Cell Broken Line Detection: | It cannot charged or discharged when the wires is broken. |
► PRODUCT DIMENSIONS
►DOWNLOAD FILE: JS 200-12-100 200AH Lithium Ion Battery Datasheet

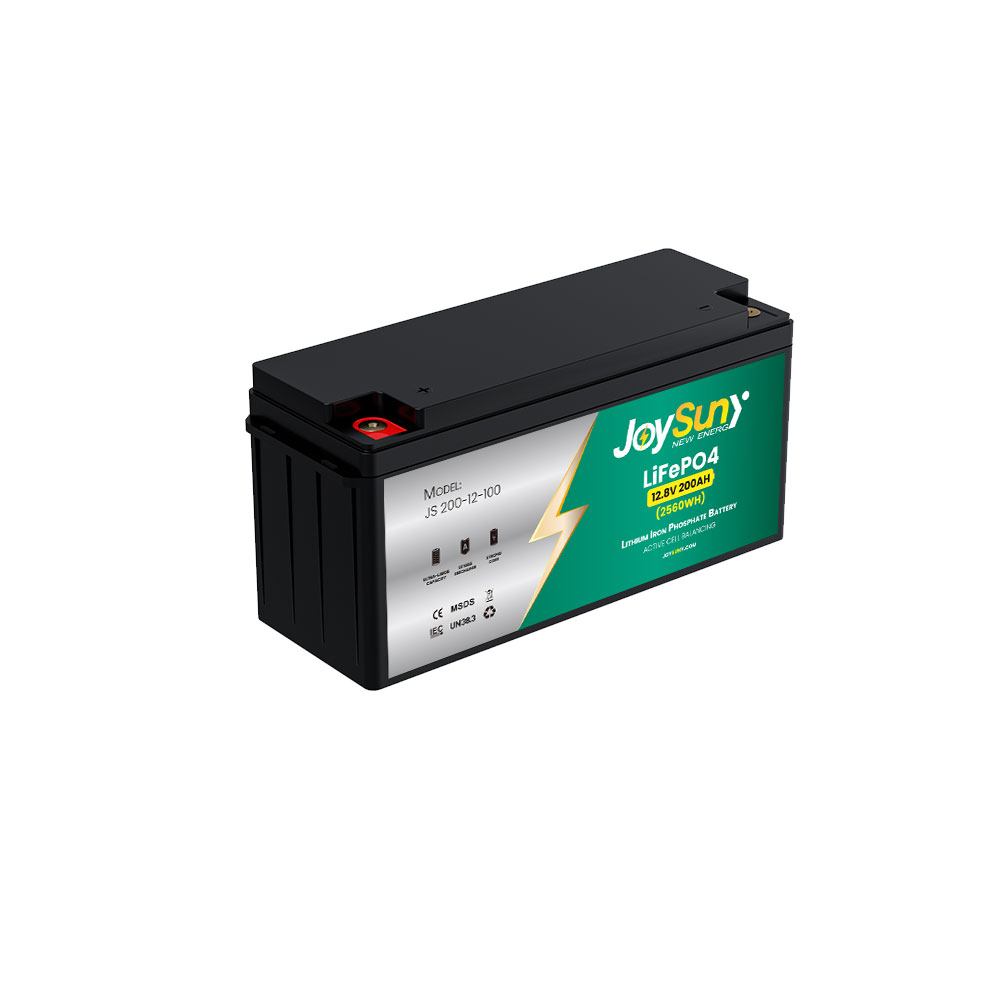

12 Volt 200Ah Deep Cycle Lithium Battery
● Built in advanced BMS and Active cell balancer
● 3 Stage current, timing & temperature protection
● Automatic internal low voltage re-start
● Self-recovery after a short circuit
● Parallel connection of the battery packs
● Active crossover equalization of the internal cell banks
● Battery can continue to operate after a single cell fails
● Single cell short circuit active balancer
● The battery pack is equipped with a balancer
